Led thanh full color 48 led 24v

Part NO    BKT-10048-1903
Lighting Source    SMD 5050 RGB diode
Beam Angel    120 degree
Operate Voltage    DC 24V
Consumption Watt/M    11.52 Watt (max)
Pixel Pitch (mm)    P60mm
LEDs(Pixel)/M    8Pixels/m
IC chip    UCS1903
PCB Color    White/Black
Bar size     1000*8 MM
Waterproof Grade    IP20/ IP67
Working temperature    -20℃-60℃
Storage temperature    -30℃-80℃

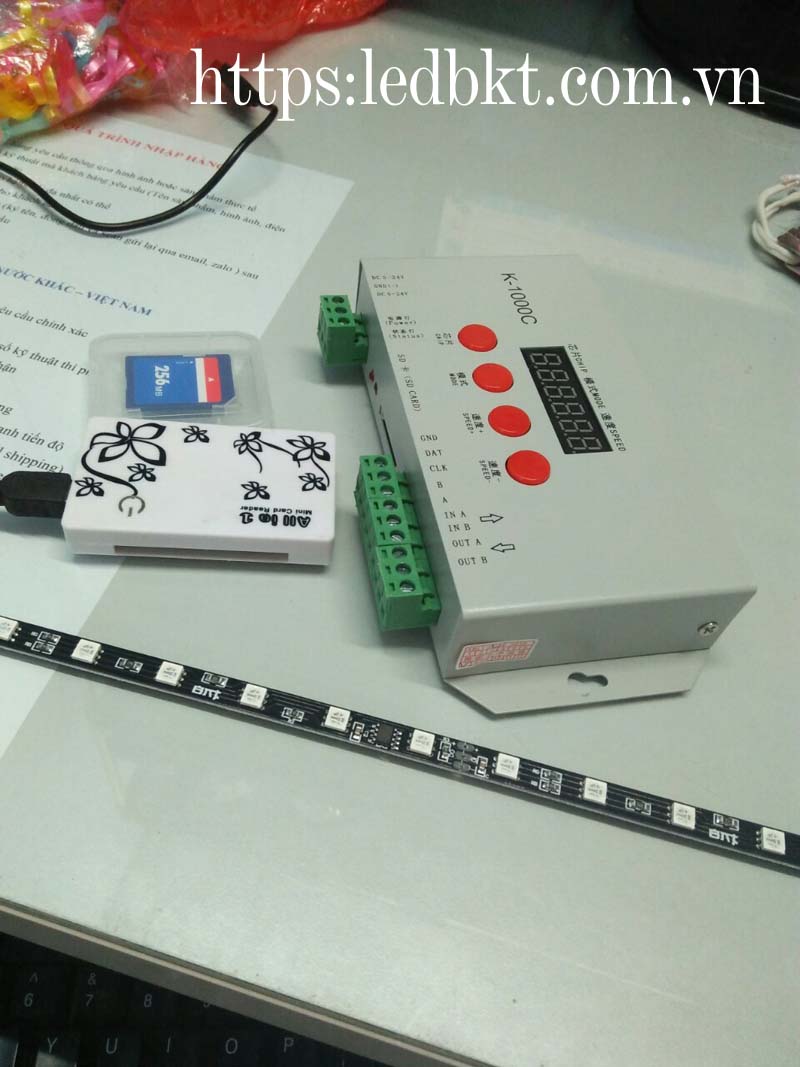

1. Controller IC UCS1903 included , supporting numerous color-change effects .

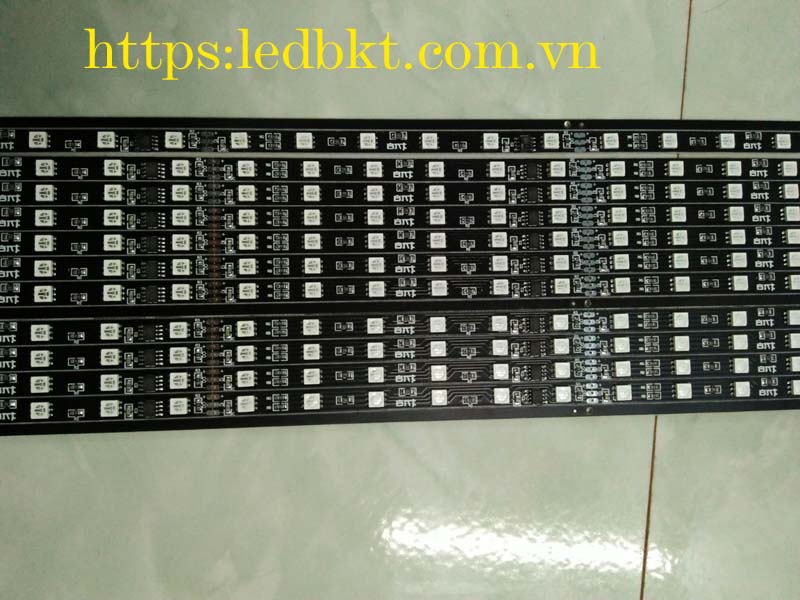

2. Rigid PCB , low voltage DC24V input , 48LEDs & 8 IC chips in one meter
3. Every 6 LEDs separately , there is cut lines between every 6 leds .
4. Aluminum case with PV glue injection waterproof for outdoor using , aluminum case with transparent cover or milky white cover non-waterproof for indoor using.
5. 0.125m , 0.25m , 0.5m , 0.75m.1m etc  length workable .
Wire Define
There is 3 Pin waterproof connector on both end for signal input/output ;
Red : +24V  ;   Green : Date ;   Yellow : Ground
